Shore A for plate material

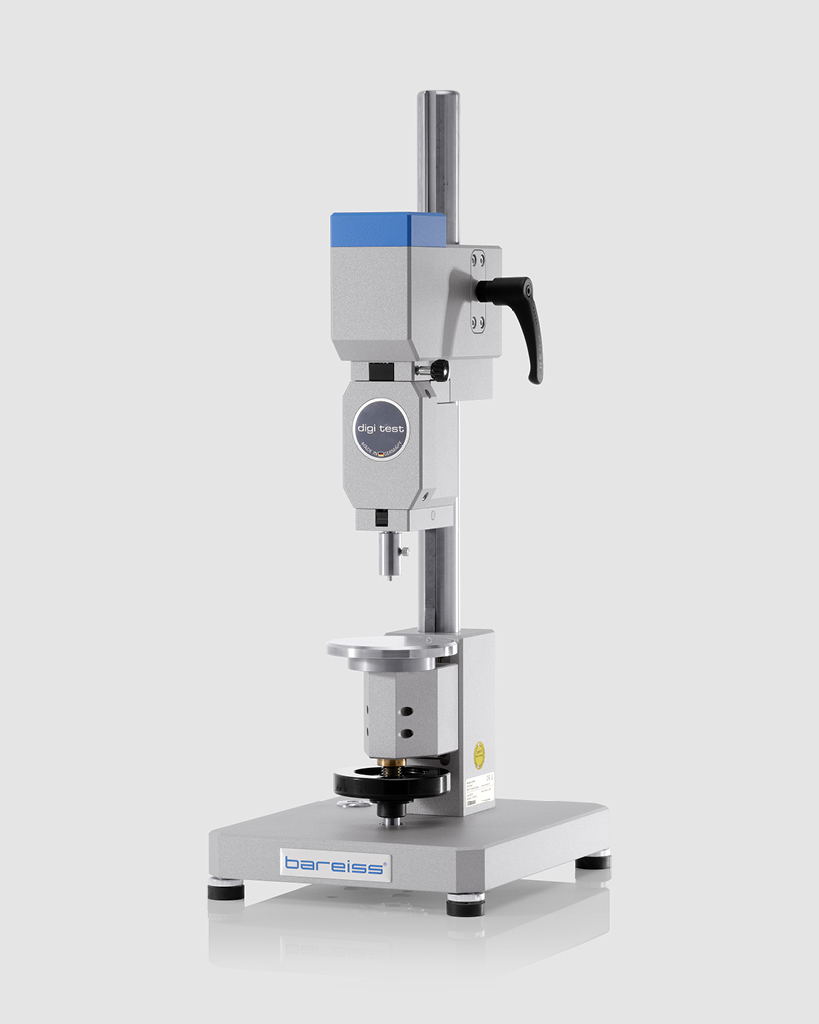

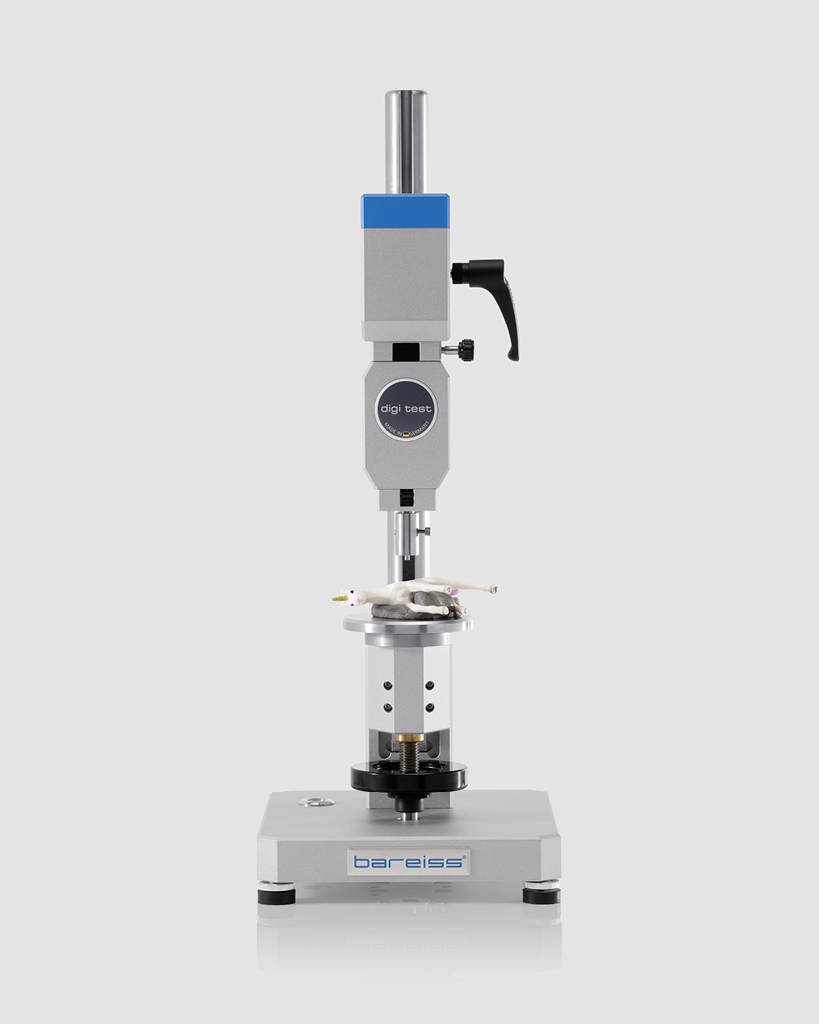

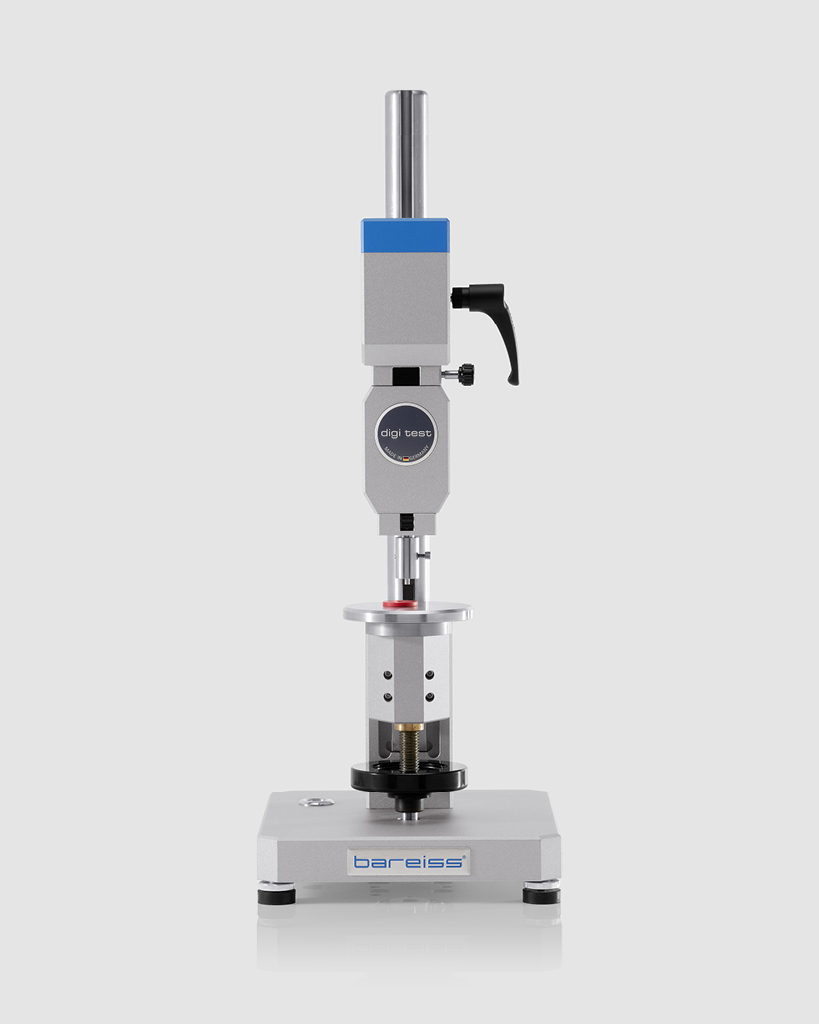

The modular digi test II offers you maximum flexibility in hardness testing for elastomers, plastics, flexible materials, composite materials, and foams. With just a few simple stepsand no tools required, the numerous measuring devices for Shore, VLRH, or IRHD can be easily swapped, allowing for quick transition between different measuring methods.
Hardness measurements take place fully automatically, minimizing user influence to a minimum. An attached electronic unit detects the selected measuring device, automatically adjusts to the appropriate measuting method, and guides through the testing procedure via the user-friendly menu. Variable centering devices assist in aligning single samples or position multiple test pieces, for example automatically or through laser guidance. All measured values and information can be directly displayed and conveniently exported into the BareissOne software platform.
Shore D for plate material
Modular expandable
Interchangeable measuring devices enable effortless switching between the numerous measuring methods in the Shore, IRHD, and VLRH ranges without the need for tools and with just a few simple steps. With a variety of positioning and measuring devices available, the digi test II is the ideal choice for laboratory, production, quality control, and development when testing a wide range of product portfolios.
Shore A/B/0 for molded parts
Shore D/C/D0 for molded parts
Micro Shore A
Micro Shore D
Test stand
Mounting arm for measuring units
Electronic unit
USB data cable
Operating manual
Shore 00
Centering device with vise
Centrofix for cables
Shore 000
Centrofix for hoses
Customized Centrofix
Customized Rotofix
Rotofix with sample holder for rheology samples
Rotofix for multiple rubber discs
Barofix for O-rings
Barofix for large O-rings
Shore AM

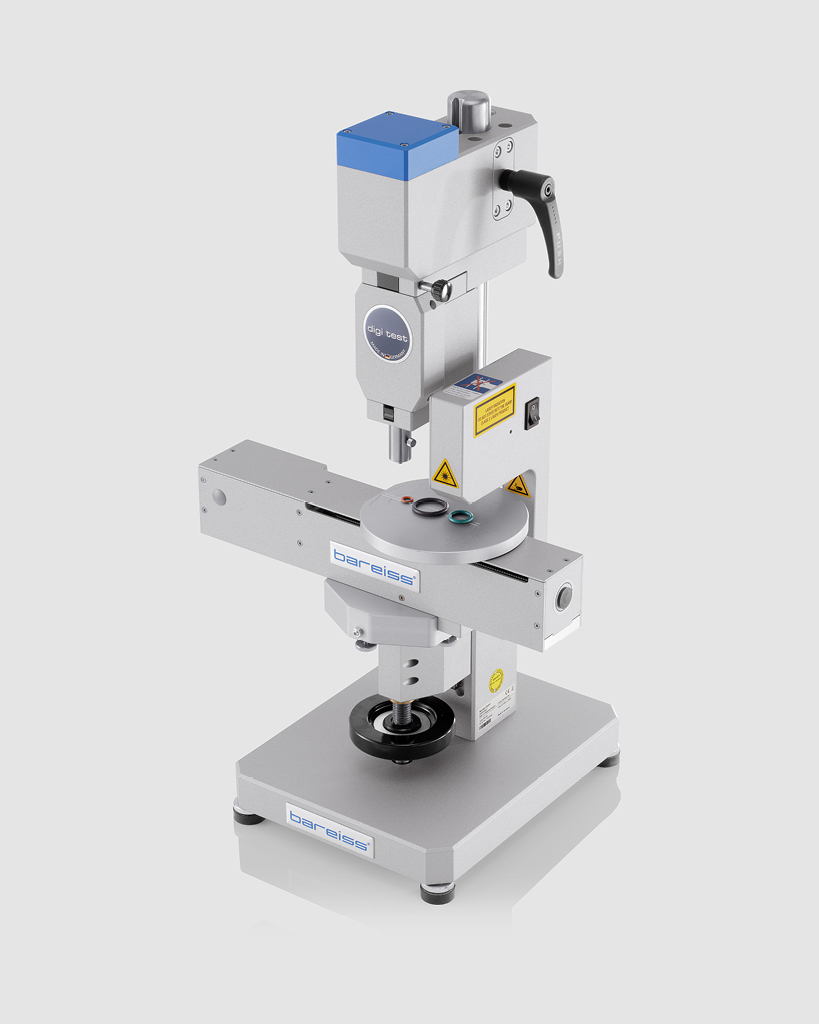

Barofix 4 for laser-controlled positioning of O-rings
IRHD N
IRHD L
IRHD M
IRHD H
VLRH
Shore A0? / Shore M? / Asker C?
Shore A0? / Shore M? / Asker C?
Many shapes – one solution
The modular expandability of the digi test II enables the measurement of all samples geometries. Whether you want to conduct measurements on flat, sloped, concave, or convex geometries, you will obtain precise measuring values starting from a sample thickness of 0.7 mm, thanks to the approach system.
Ssecure measuring values without user influence
In addition to perfect alignment as a tabletop unit, the digi test II ensures the optimal measuring position of testspecimens through its numerous positioning devices. Most accurate measurements without user influence and manual pre-adjustment are guaranteed, giving you time for the important things.
Comprehensive analysis though various measuring methods
Measure not only the hardness grade of your test speciment but also the material's flow curve during the test. With the option for hysteresis measurements, the digi test II provides additional insights into the material's characteristic properties.
BareissOne – The software platform for your measuring values
The unique and modular software platform BareissOne allows you to centrally store and analyze all measuring values from your Bareiss testing devices. The user-friendly interface offers statistical analysis of measurement values with user administration and automatic generation of test protocols. Whether it is a standard test for individual measurements or a test series with a complex text sequence, BareissOne meets your specific requirements.
Other features
Flat, sloped, convex, and concave geometries of composite materials, flexible materials, elastomers, plastics and foams
The digi test II enables precise and user-independent hardness measurements on elastomers, plastics, flexible materials, composite materials, and foams. This modular expandable measuring system is utilized in research and development as well as in production and quality control to determine the material hardness of a wide range of portfolios and ensure quality standards.
DAkkS accredited calibration certificate
for measuring device
Magnifying glass
with 2.5x magnification,
flexible, pivoting
Standard blocks
with DAkkS accredited calibration certificate
Software
Measurement data system
and analysis system
O-rings
Plate material
Molded parts and thin samples with a material thickness of at least 0.7 mm depending on the measuring method
0.1 hardness units
Test stand
Dim. W x H x D: 20 x 55 x 25 cm
Weight: 9,00 kg
With pick-up bracket and measuring device
Dim. W x H x D: min. 20 x 55 x 25 cm
max. 20 x 60 x 31 cm
Weight: 15,60 kg
Elektronic unit
Dim. W x H x D: min. 26 x 11,5 x 26,5 cm
max. 26 x 11,5 x 34 cm
Weight: 2,32 kg
Pick-up bracket
Dim. W x H x D: 11,5 x 12,5 x 17 cm
Weight: 1,99 kg
Power supply: 100-240 VAC; 50/60 Hz
Protection class: IP 50
USB or RS-232 interfaces for data transfer
Traceability refers to the ability to monitor the origin, progress and history of our products, calibrations, processes, or measurements. This means that all steps and parameters that contribute to the creation of our products must be documented and traceable.
Traceability ensures the transparency, integrity and reliability of data and enables the checking of quality standards. It plays a crucial role in error detection, quality control and ensuring compliance with legal requirements and our quality standards.
DAkkS-accredited laboratory since 1996 – Calibrations meeting the highest requirements and global standards.
Calibration reminders – We automatically remind you of your next calibration.
Service packages – Accredited calibration including maintenance and repair at a fixed price. Everything from a single source.
Trust Bareiss for reliable calibrations and accurate measurement results.
Benefit from our experience as a manufacturer and accredited calibration laboratory.
Bareiss recommendation: Laboratory conditions according to DIN ISO 23529
We are happy to answer any questions you might have about hardness testing!
Phone+49 7305 9642-0
Fax +49 7305 9642-22
Email
Opening hours:
Monday - Thursday: 07:00 - 16:00
Friday: 07:00 - 12:00
Modular hardness testing system for fully automatic hardness testing according to Shore, VLRH, and IRHD on composite materials, flexible materials, elastomers, plastics, and foams with variable test geometries.
