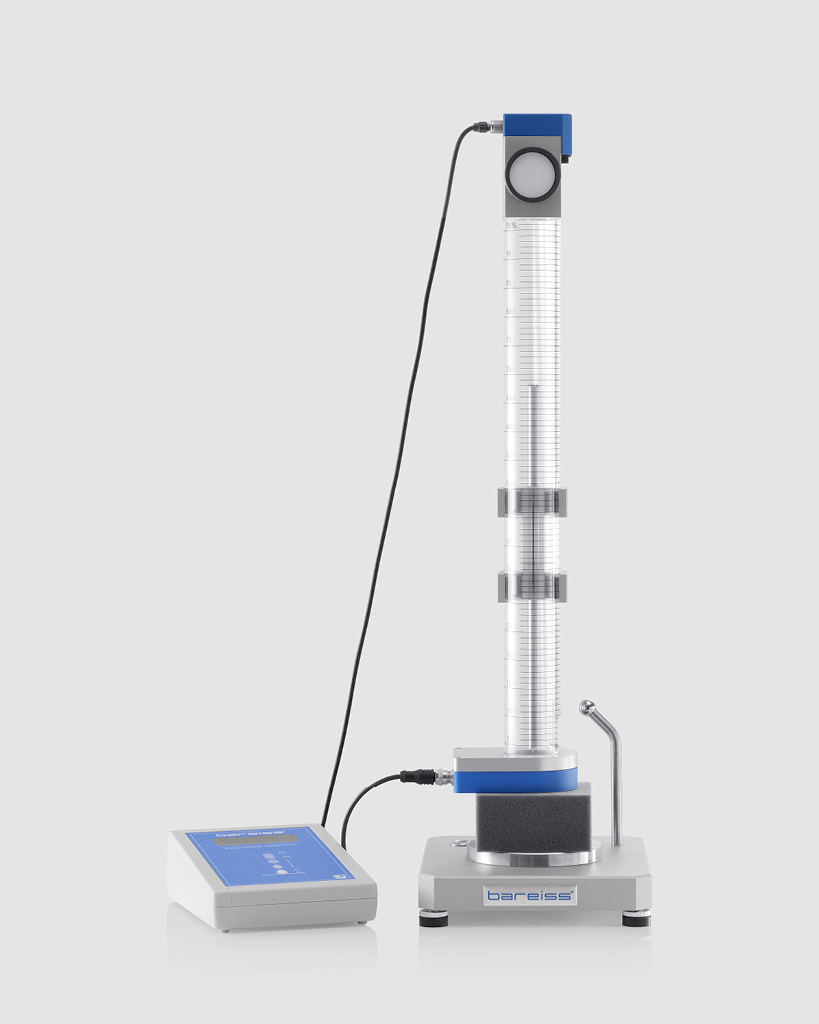

Through measurement of the rebound height of a ball after fre fall and impact on a test specimen, you analyze the resilience of polymer foams with our Ball Rebound Tester. The vertical alignment of the measuring device ensures an undisturbed fall of the ball. The minimum strength of the plane-parallel specimens is 50 mm. Thanks to the practical attachment of the downpipe, its resting height can be continuously adjusted to the thickness of the test specimens. The ball remains securely adjusted until the start using a magnetic holder and is manually released at the beginning of the measurement through the handwheel. After the ball impacts the test specimen, sensors determine the height of the rebound. Depending on the selected mode, the electronic unit gathers the individual values as well as the median or average value of multiple measurements and displays them on the screen.
Different measurement modes
To calculate median values or average values, you can choose between different measurement modes according to the standard. Additional Bareiss-specific measurement modes, deviating from the standard, enable additional measurement results that cannot be covered by a standard measurement.

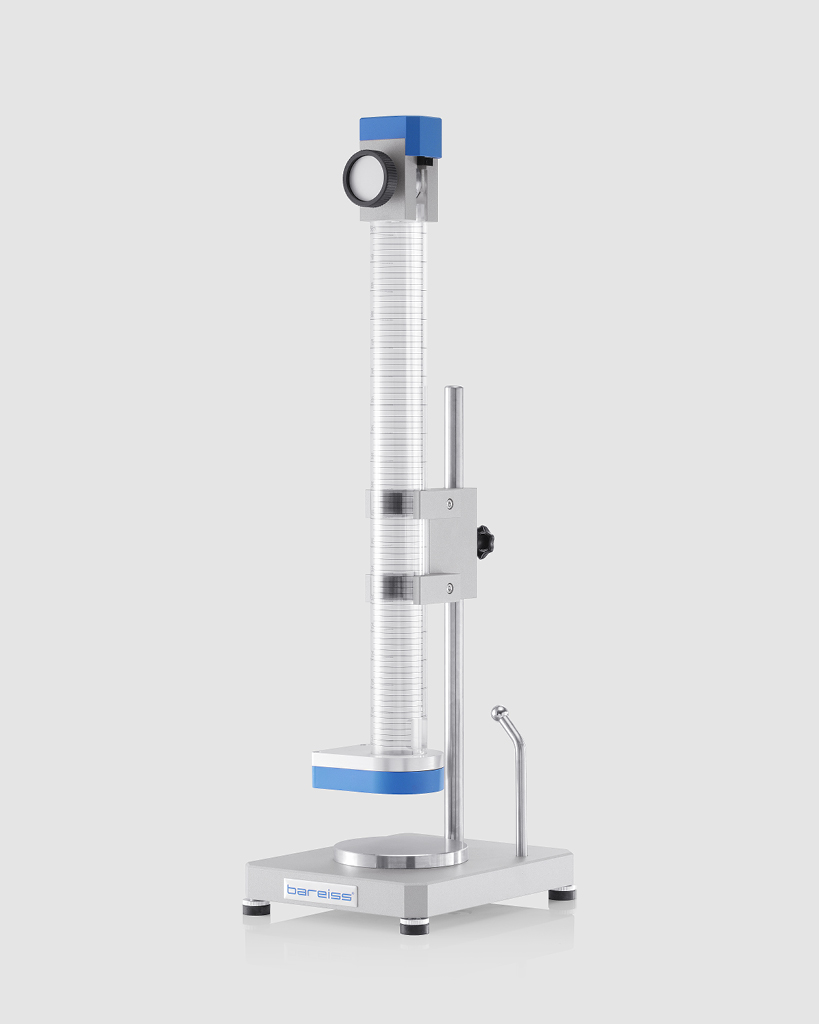

Test stand with supporting table
Scaled downpipe, drop height 500 mm
or drop height 460 mm
External electronic unit
Ball with magnetic ball holder
Simple and intuitive operation

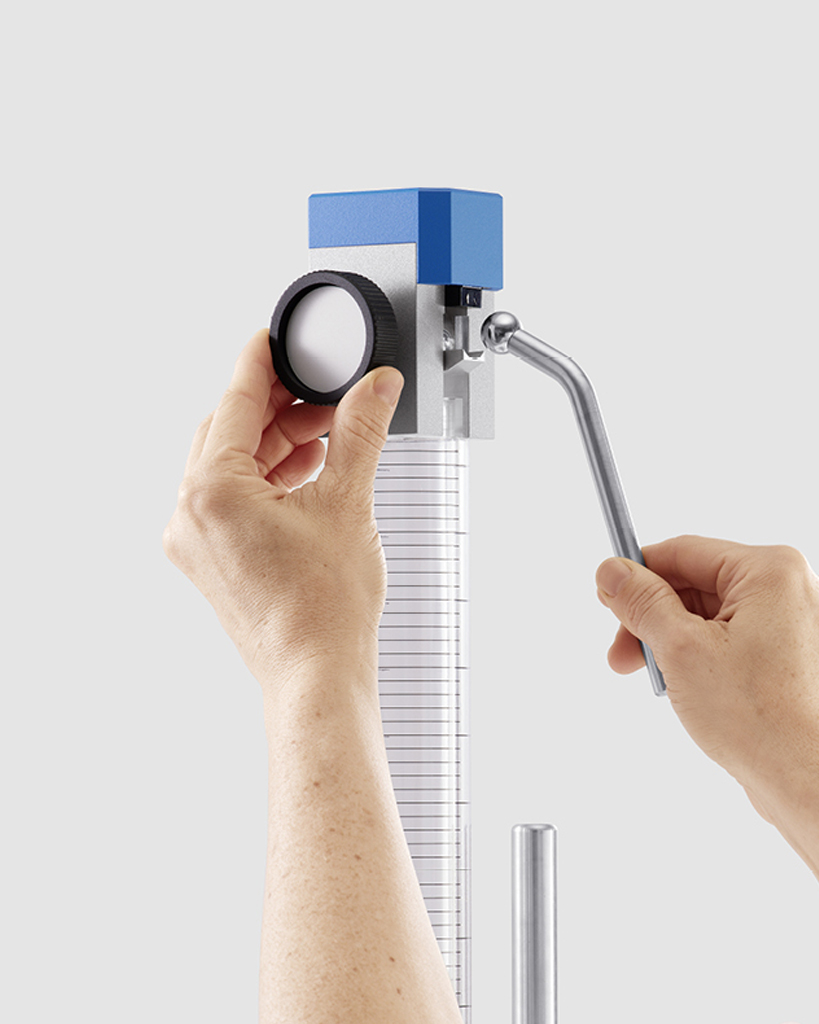

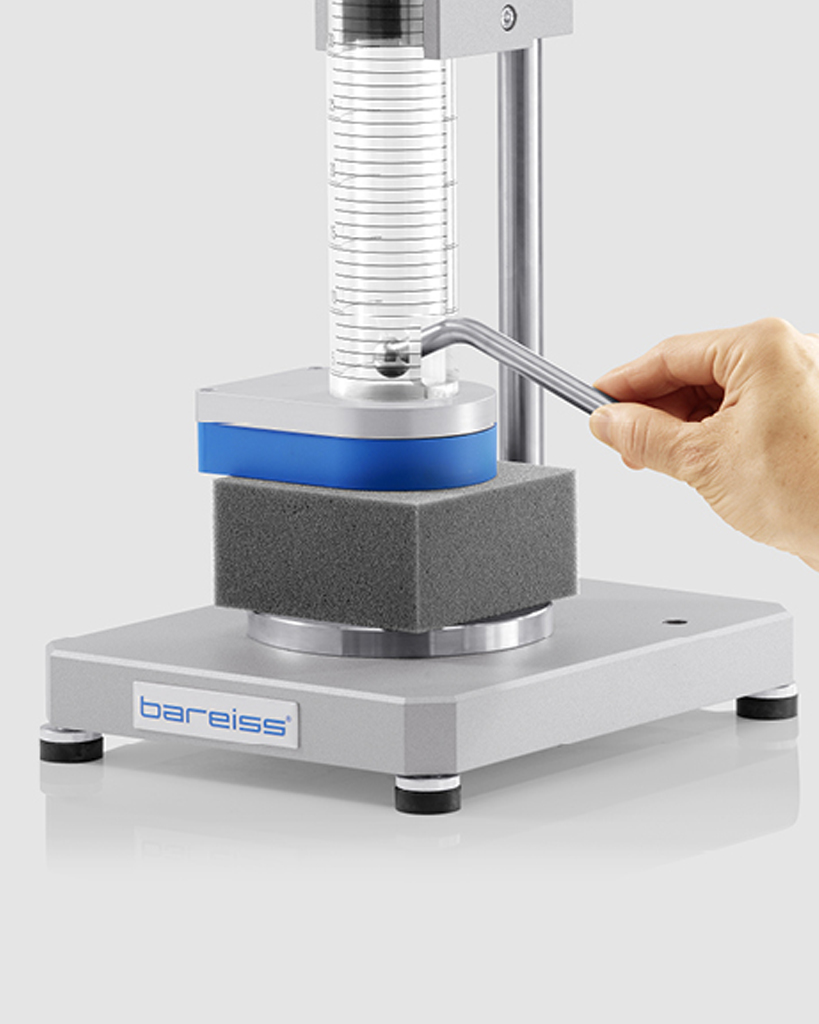

In two steps to the measurement result: After inserting the ball, only one handwheel needs to be turned 90° to initiate the test procedure.
Other features
Method for determining the rebound resilience for polymer foams.
Scaled downpipe,
drop height 500 mm
or drop height 460 mm
Factory calibration certificate
for the measuring unit
Software
100 x 100 x 50 mm
0.1 % rebound elasticity
Test stand
Dim. W x H x D: 20 x 47 x 25 cm
Weight: 5,93 kg
wiht 460 down pipe
Dim. W x H x D: min. 20 x 62 x 25 cm
max. 20 x 75 x 25 cm
Weight: 7,87 kg
with 500 down pipe
Dim. W x H x D: min. 20 x 66 x 25 cm
max. 20 x 79 x 25 cm
Weight: 7,90 kg
460 down pipe
Dim. W x H x D: 12,5 x 56 x 16 cm
Weight: 1,94 kg
500 down pipe
Dim. W x H x D: 12,5 x 60 x 16 cm
Weight: 1,97 kg
Elektronic unit
Dim. W x H x D: 14,5 x 6,5 x 20,5 cm
Weight: 0,52 kg
Power supply: 100 - 240 VAC; 50/60 Hz
Potection class:
Elektronic unit: IP 30
Down pipe: IP 20
RS 232
Traceability refers to the ability to monitor the origin, progress and history of our products, calibrations, processes, or measurements. This means that all steps and parameters that contribute to the creation of our products must be documented and traceable.
Traceability ensures the transparency, integrity and reliability of data and enables the checking of quality standards. It plays a crucial role in error detection, quality control and ensuring compliance with legal requirements and our quality standards.
DAkkS-accredited laboratory since 1996 – Calibrations meeting the highest requirements and global standards.
Calibration reminders – We automatically remind you of your next calibration.
Service packages – Accredited calibration including maintenance and repair at a fixed price. Everything from a single source.
Trust Bareiss for reliable calibrations and accurate measurement results.
Benefit from our experience as a manufacturer and accredited calibration laboratory.
Bareiss recommendation: Laboratory conditions according to DIN ISO 23529
We are happy to answer any questions you might have about hardness testing!
Phone +49 7305 9642-0
Fax +49 7305 9642-22
Email
Opening hours:
Monday - Thursday: 07:00 - 16:00 Uhr
Friday: 07:00 - 12:00 Uhr

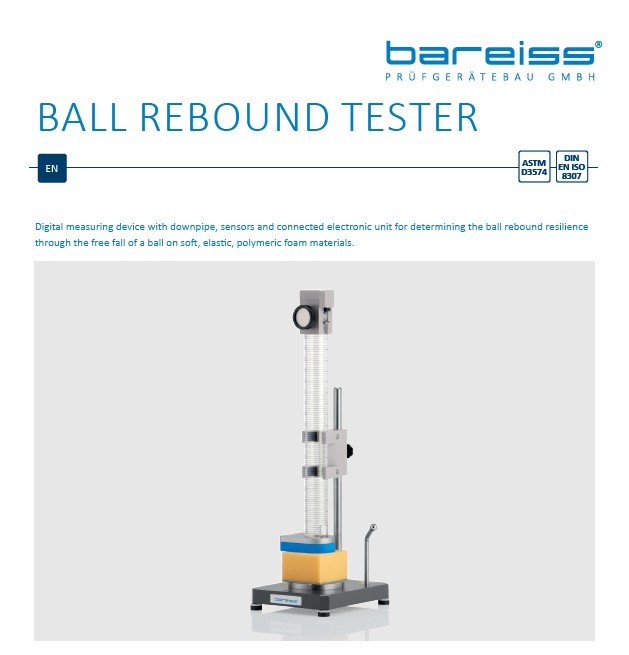

Measuring device for determining the ball rebound resilience by the free fall of a ball on flexible, polymer foams.
