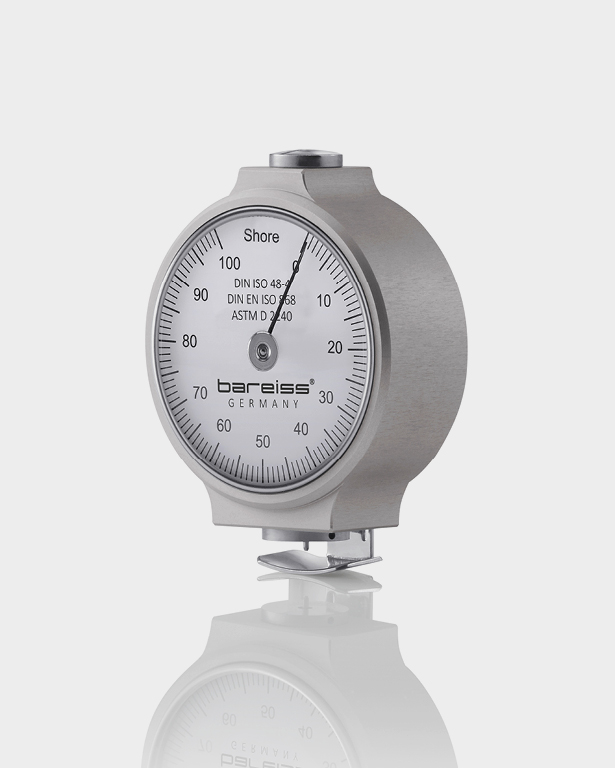

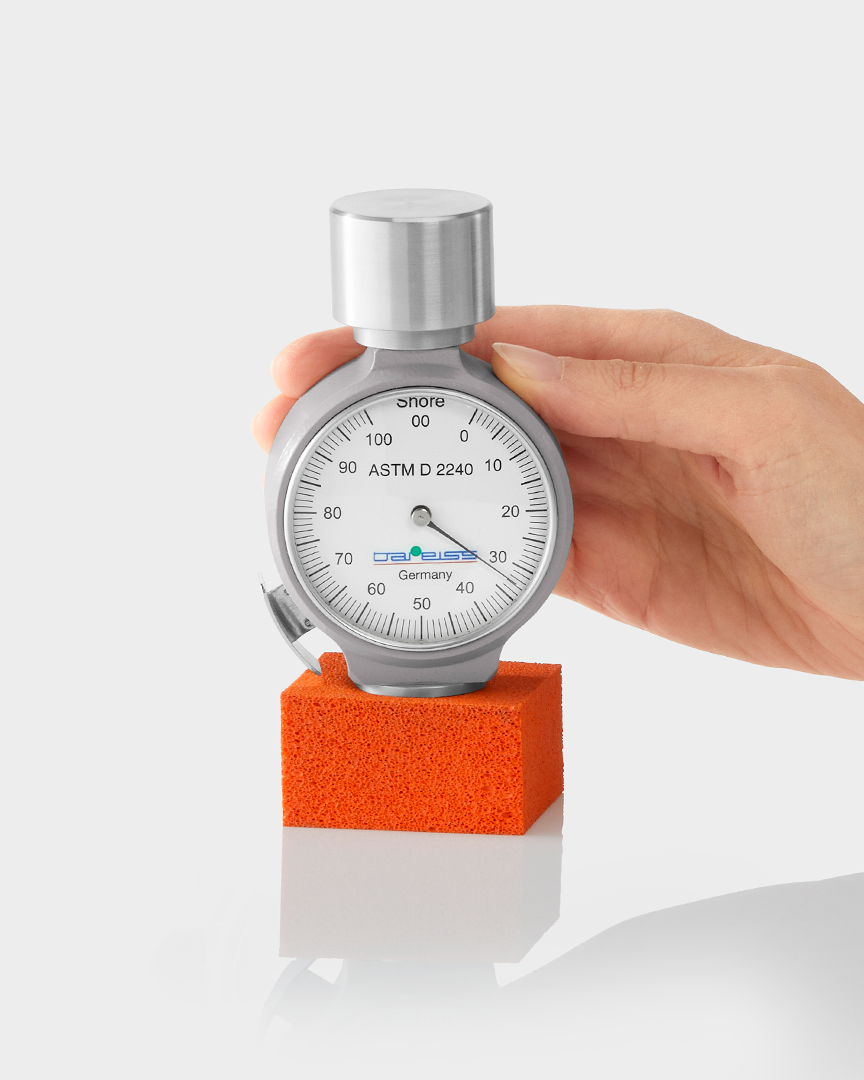

The HP is used for hardness determination according to Shore scale on flexible materials, elastomers, and plastics. For reliable hardness testing according to standard, a smooth and flat test specimen with a diameter of ≥ 35 mm and a material thickness of ≥ 6 mm is required. The handheld hardness tester is placed vertically on the surface of the test specimen and manually pressed. The specially designed, high-precision mechanics ensure minimal friction of the meter movement, thereby ensuring high measurement precision.
The determined hardness can be read on the analog display of the HP during the measurement. the precision of the hardness tester should be regularly verified by the user using standard blocks to ensure accurate measuring results.
Lightweight and compact

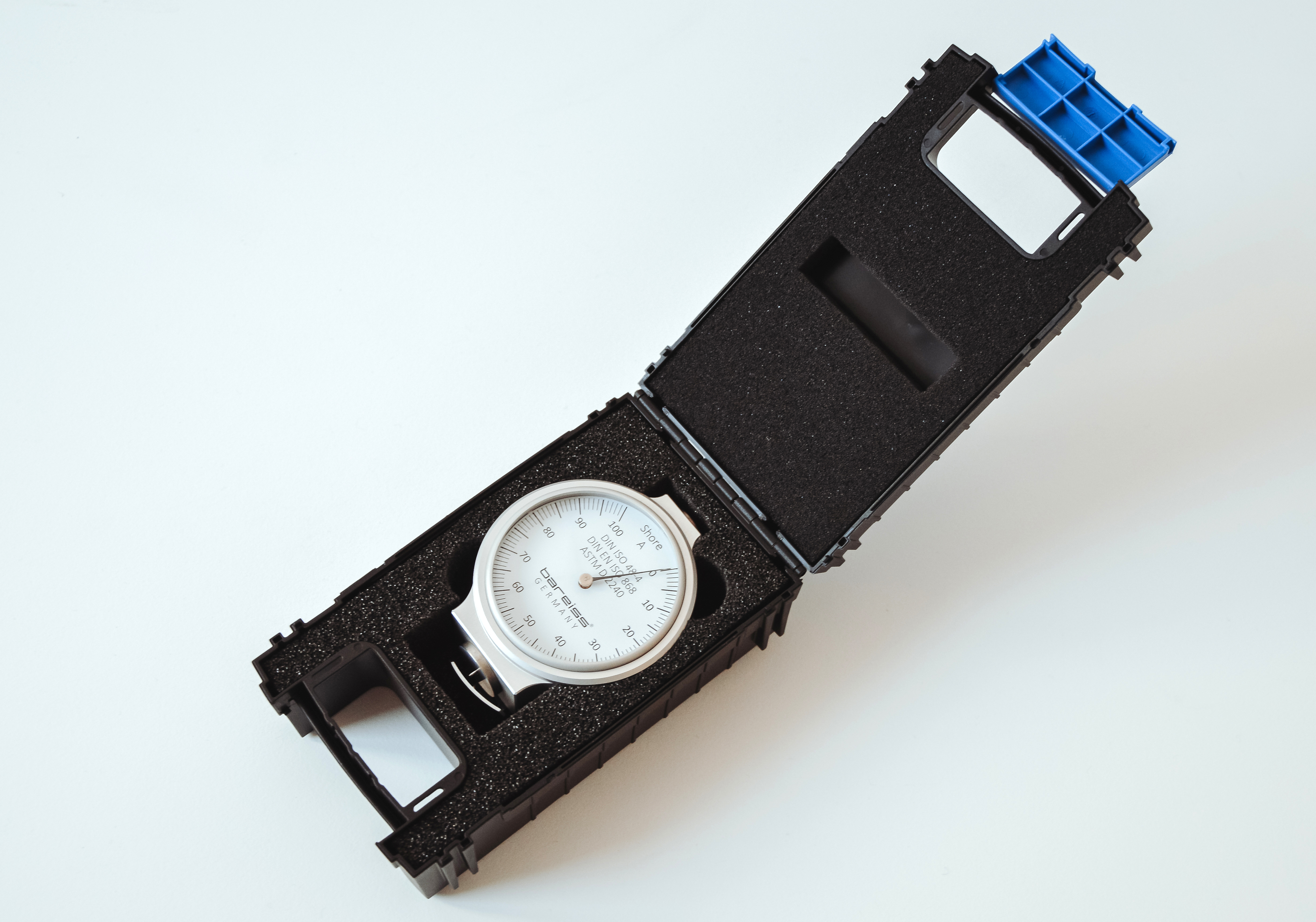

The compact size of the handheld hardness tester allows for convenient transport to the desired site of operation. Whether in the factory, warehouse, receipt of goods, or during quality inspections at the supplier, the HP is easy to carry and well protected by the practical carrying case.
Carrying case
Two measurements in one
With the optional maximum indicating pointer, the peak value of the hardness test is displayed on the dial even after the measurement.
Universally applicable

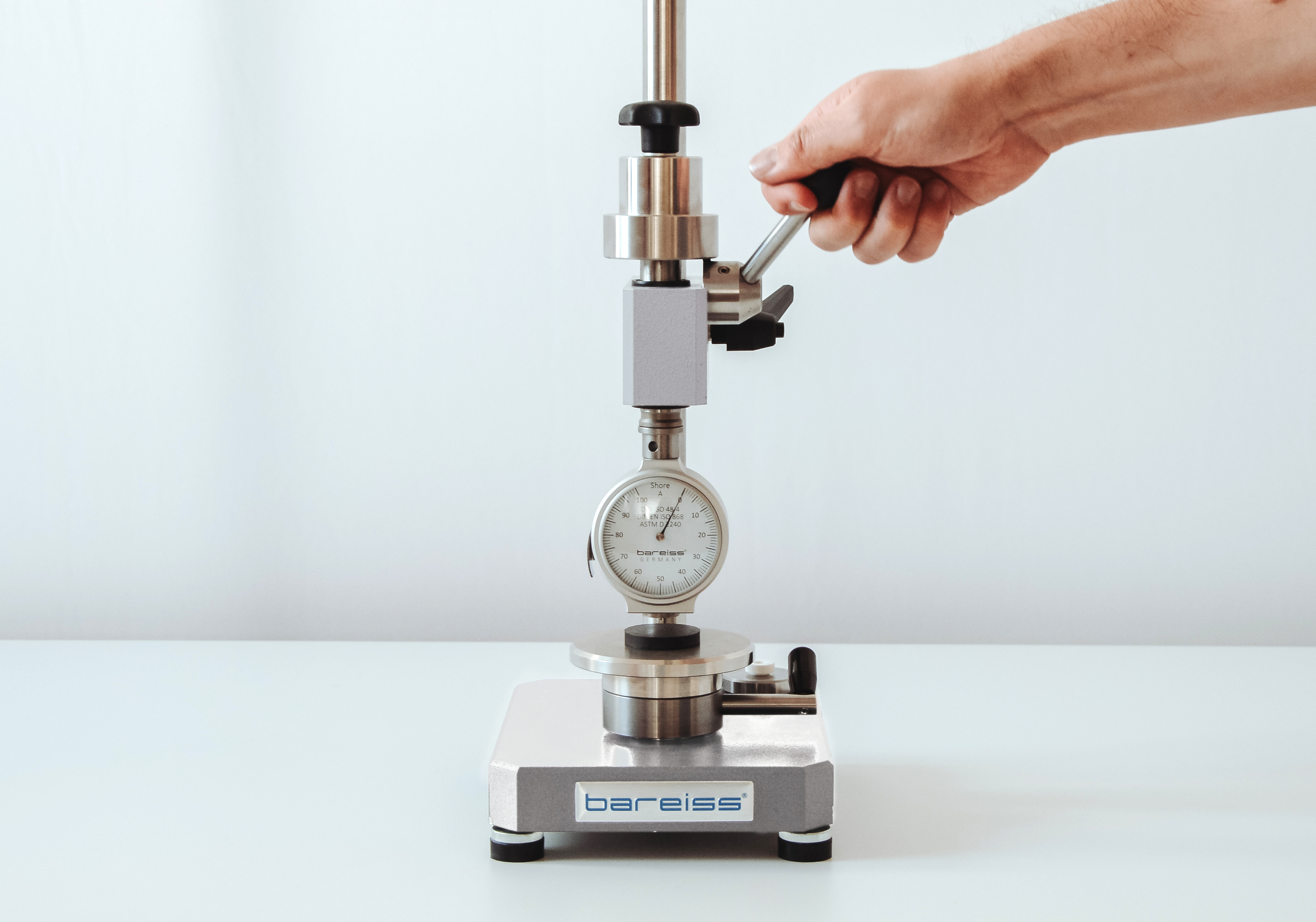

In addition to its use as a flexible and lightweight handheld hardness testing device, the HP, when expanded with a test stand, also offers a stationary solution that adapts to your requirements. When combined with our manual test stand BS 61 II, the HP also serves as a tabletop unit for measurements in a laboratory enviroment.
Other features
Hardness determination of composite materials, flexible materials, elastomers, plastics, foams, as well as automotivee interior equipment

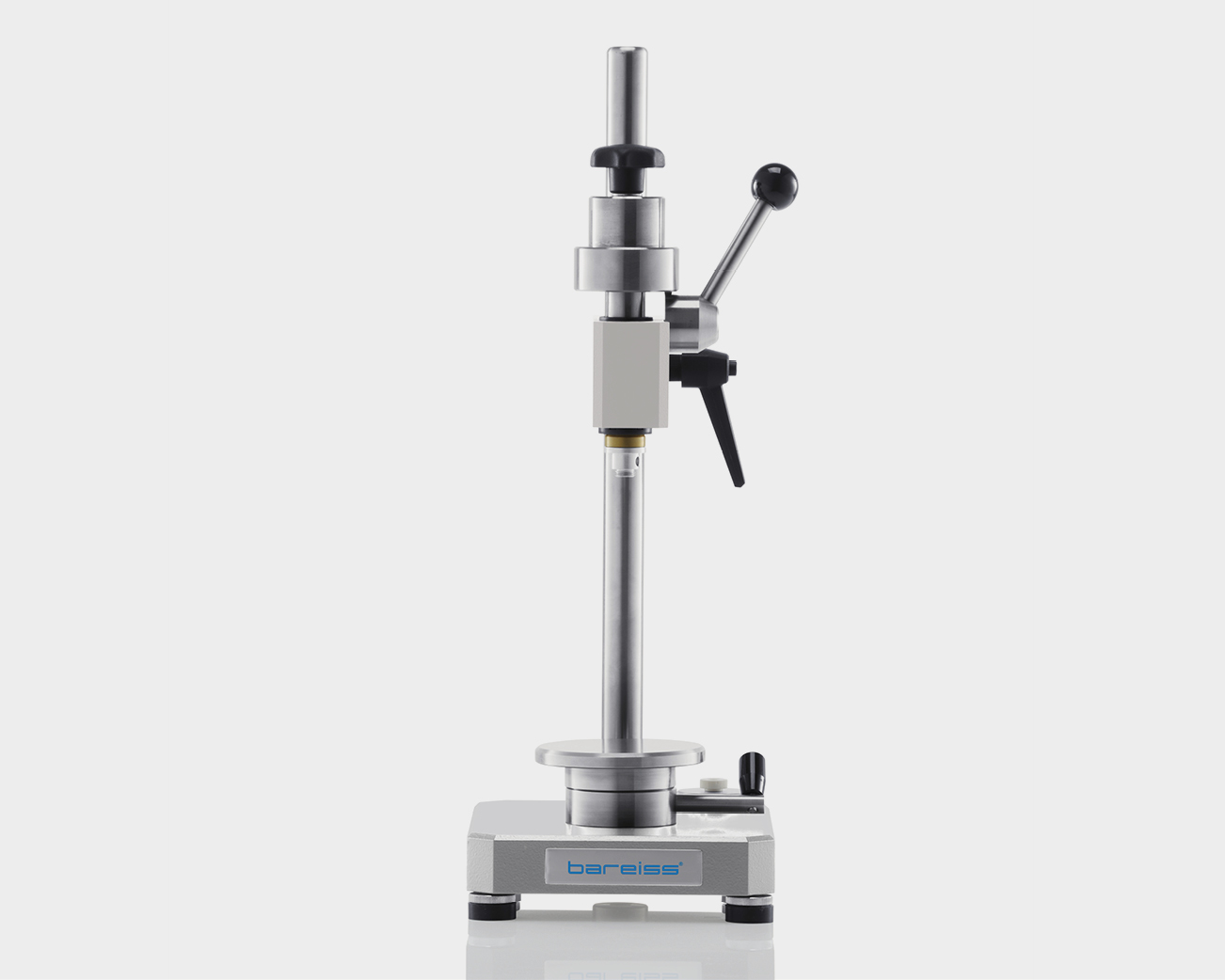

BS 61 II, manual test stand

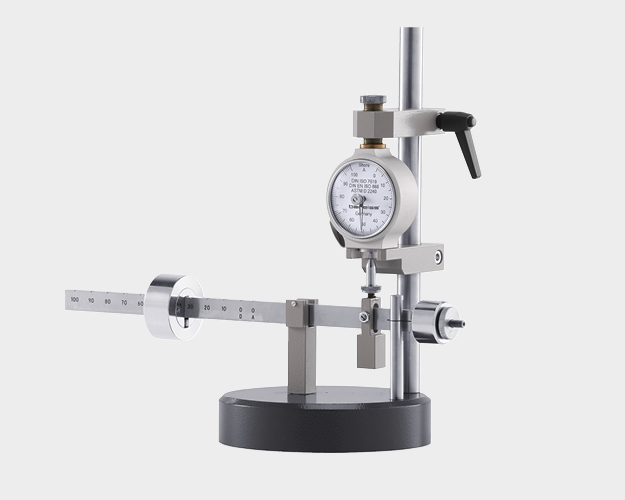

Elasticity control unit
Shore A/Shore D
DAkkS accredited calibration certificate

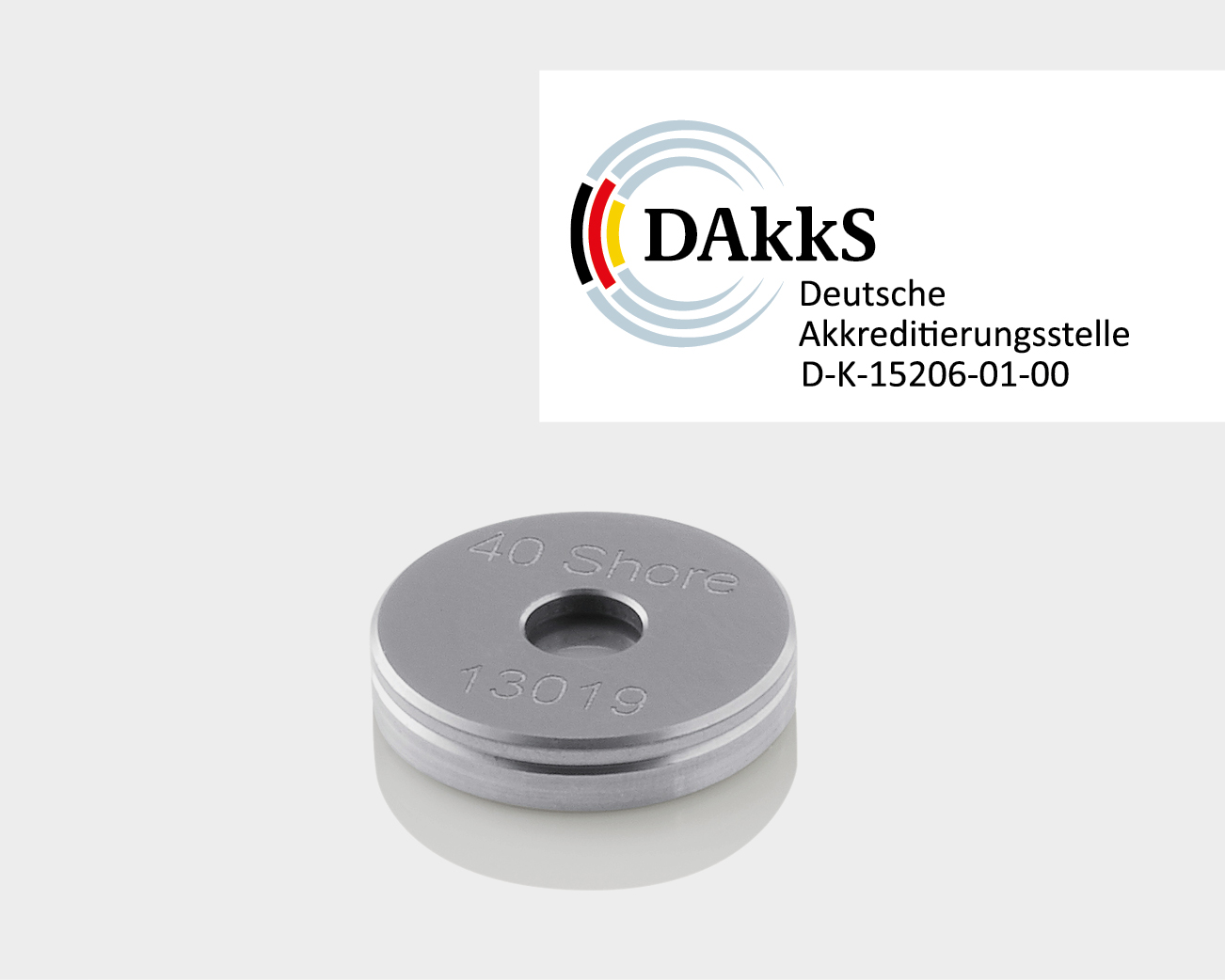

Control rings
with DAkkS accredited calibration certificate
Standard blocks
with DAkkS accredited calibration certificate,
individual/3-piece or 6-piece set
Plate-shaped test specimens minimum 6 mm
1 Shore
Dim. W x H x D: min. 6,5 x 8,2 x 3,7 cm
max. 6,5 x 8,2 x 4,1 cm
Weight: 0,22 kg
Protection class: IP 30
None

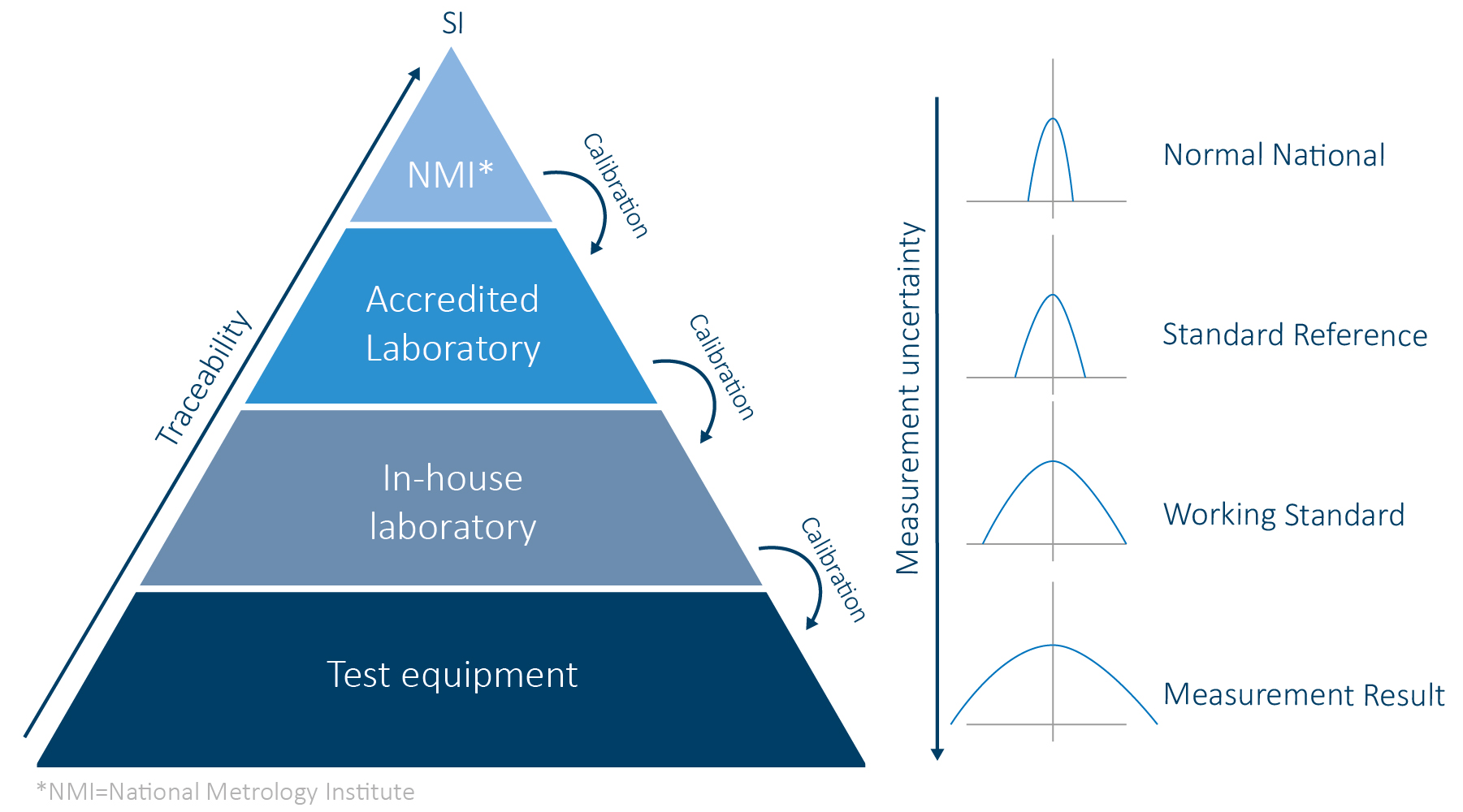

Traceability refers to the ability to monitor the origin, progress and history of our products, calibrations, processes, or measurements. This means that all steps and parameters that contribute to the creation of our products must be documented and traceable.
Traceability ensures the transparency, integrity and reliability of data and enables the checking of quality standards. It plays a crucial role in error detection, quality control and ensuring compliance with legal requirements and our quality standards.
DAkkS-accredited laboratory since 1996 – Calibrations meeting the highest requirements and global standards.
Calibration reminders – We automatically remind you of your next calibration.
Service packages – Accredited calibration including maintenance and repair at a fixed price. Everything from a single source.
Trust Bareiss for reliable calibrations and accurate measurement results.
Benefit from our experience as a manufacturer and accredited calibration laboratory.
Bareiss recommendation: Laboratory conditions according to DIN ISO 23529
We are happy to answer any questions you might have about hardness testing!
Phone +49 7305 9642-0
Fax +49 7305 9642-22
Email
Opening hours:
Monday - Thursday: 07:00 - 16:00
Friday: 07:00 - 12:00

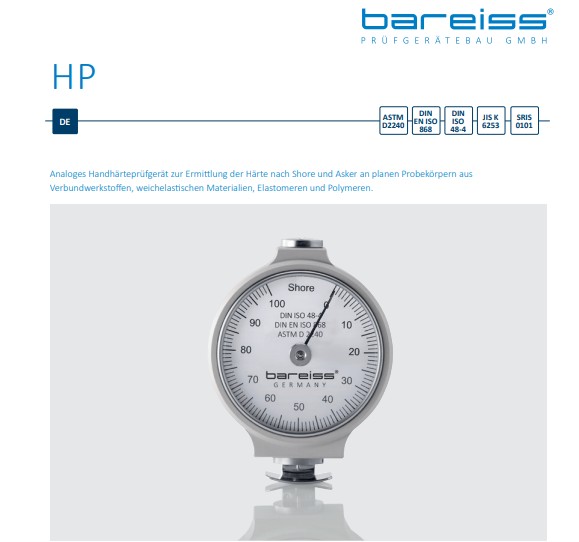

Analog handheld hardness tester for determining hardness according to Shore and Asker scales on flat specimens made of composite materials, flexible materials, elastomers. and polymers.
